- Origin, Protrusion, Extrude, Revolve, Hole, Group, Pattern, Fillet, Chamfer, Shell, Rib, Draft
![](fk_xy.jpg)
An example of an assembly.
![](plastic1.jpg)
An example of a plastic part using Wildfire Student Edition.
The Draft angles for molding have been slightly exaggerated.
![](plastic2.jpg)
This is the drawing of the plastic part model.
The drawing includes a Cross Section view (X).
Some dimensions and text have been omitted for clairity.
![](cap1.jpg)

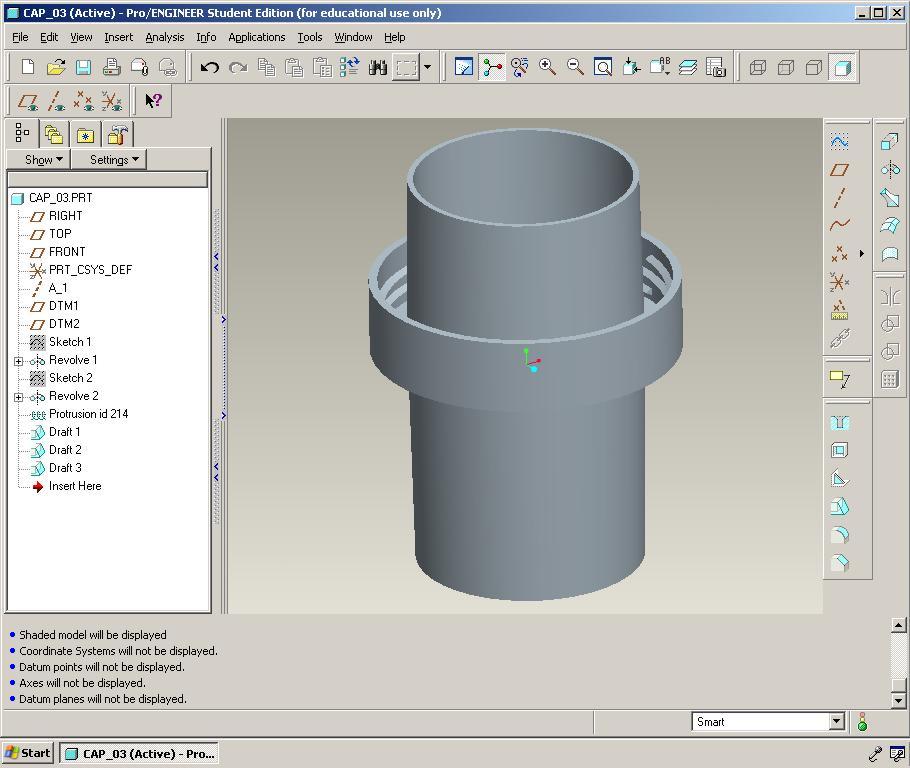

This is a cap for a detergent bottle.
The threads were made as a helical sweep ( Protrusion id 214 ).
![](sheetm01.jpg)

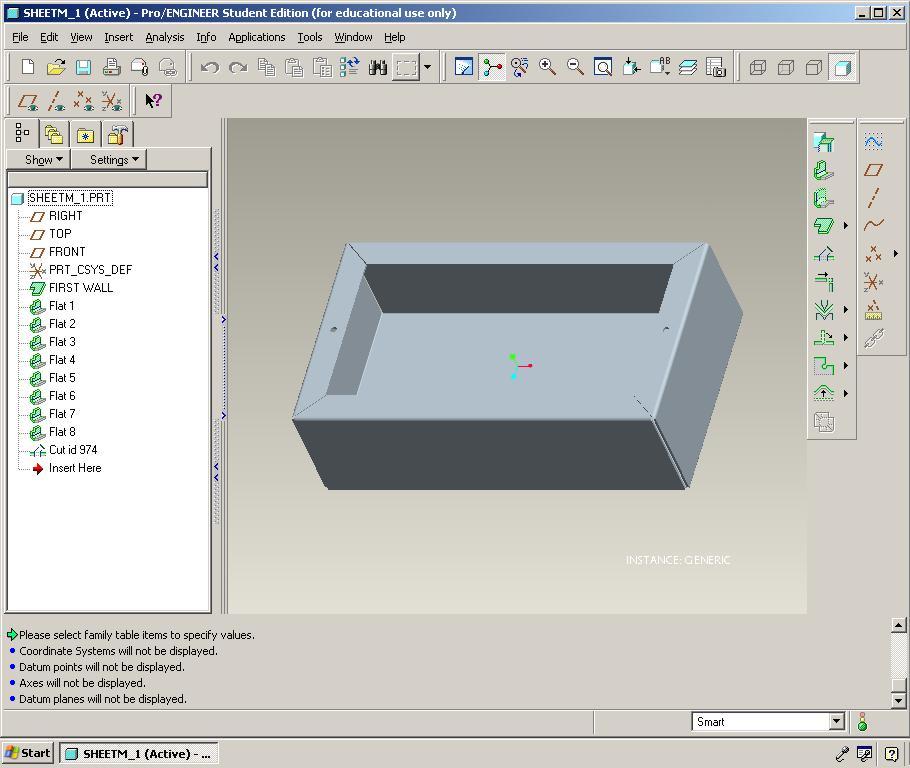

This is a Sheet Metal part modeled as the finished product.
![](sheetm02.jpg)
This is the Sheet Metal part flatened as it would be during manufacturing, before bending.
![](sheetm03.jpg)

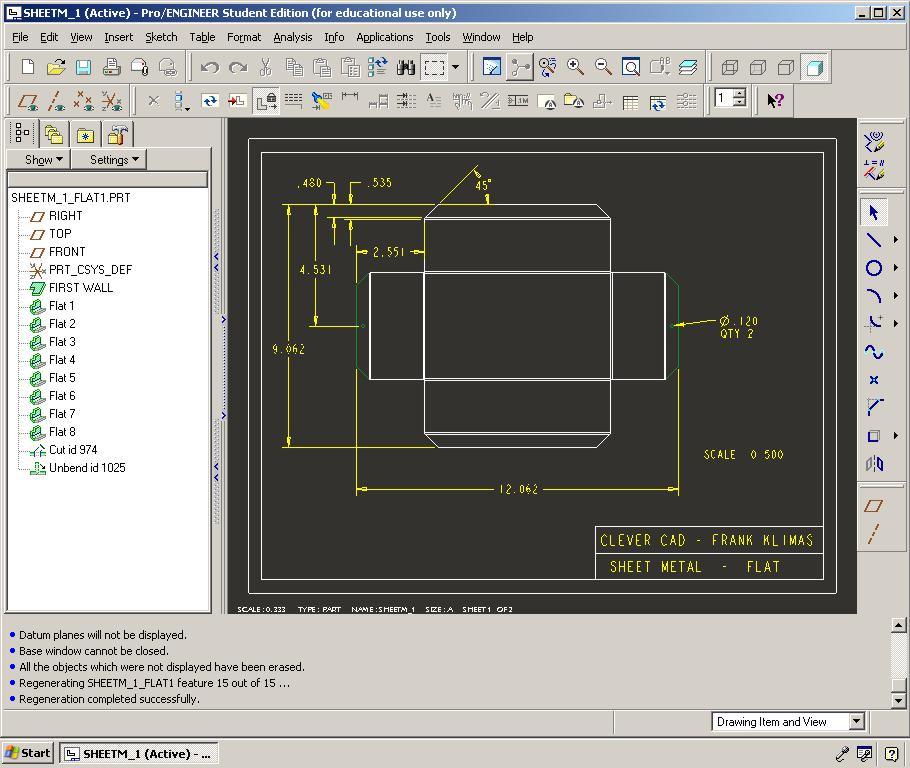

This is the drawing of the flatened Sheet Metal part.
![](sheetm04.jpg)

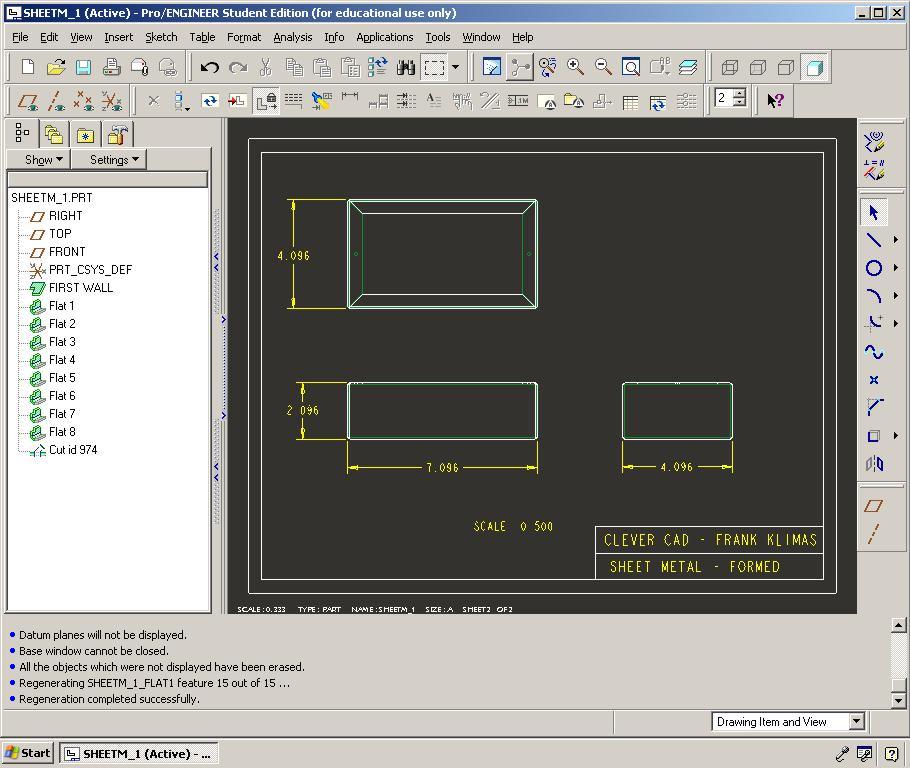

This is the drawing of the formed Sheet Metal part.
